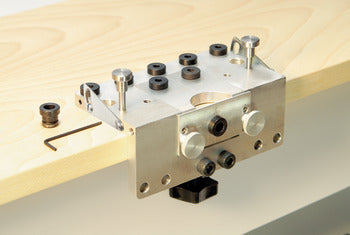

The Hafele Replaceable Drilling Jig for 35mm concealed hinges is a solid choice when you need precision and repeatability on cabinet work. This jig gives you confidence to drill hinge cups accurately—quickly setting up your door hardware without second-guessing your measurements.

Key Features:

• Replaceable Inserts - keep your jig performing like new; just swap out worn parts without buying an entire unit.
• Precise Hole Positioning - engineered for exact alignment on the standard 35mm hinge cup, making sure a snug and professional fit every time.
• Easy-to-Use Clamping - attaches firmly to door panels, so the jig doesn’t slip or move during drilling.
• Tough Construction - built to withstand workshop use while maintaining accuracy over long periods.
• Compatible with Standard Drill Bits - no need for special tools; works straight out of the box with common Forstner bits used in woodworking.

Applications

This jig is made for anyone installing or replacing concealed hinges in cabinets and furniture doors. Whether you're a pro fitter or a dedicated DIYer, it simplifies mounting by giving you consistent hole placement—even on tricky or uneven surfaces. What really stands out is how it cuts down setup time while avoiding costly mistakes that come from misplaced hinge holes.

Why Choose This Model

The bottom line is reliability. Hafele's name speaks quality in cabinet hardware, and this drill jig reflects that reputation. It's not cluttered with unnecessary bells and whistles—just straightforward, practical engineering that works day in, day out. Plus, those replaceable inserts mean the jig stays accurate longer without needing a full replacement.

Technical Specifications Explained

• Bore Diameter: 35mm - matches the standard size needed for most concealed hinge cups perfectly, so your hardware fits tight and flush.
• Material: High-grade plastic with steel inserts - combines lightweight handling with durable drilling guides that resist wear.
• Total Length: Approx. 120mm - compact enough to use comfortably on various door sizes without being awkward or bulky.
• Clamp Type: Toggle clamp mechanism - guarantees firm attachment to panels of different thicknesses ranging from about 12mm to 25mm without slippage.
• Weight: Around 400g - weighs just enough to stay steady but easy to maneuver single-handed during installation tasks.

Who Should Buy This

If you regularly work with kitchen cabinets or furniture requiring concealed hinges, this jig makes drilling those precise holes straightforward—the perfect pick for carpenters and serious hobbyists alike.
