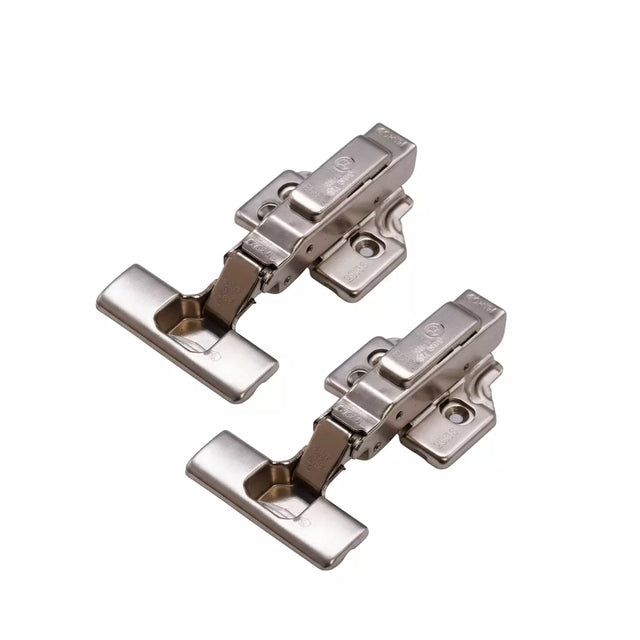

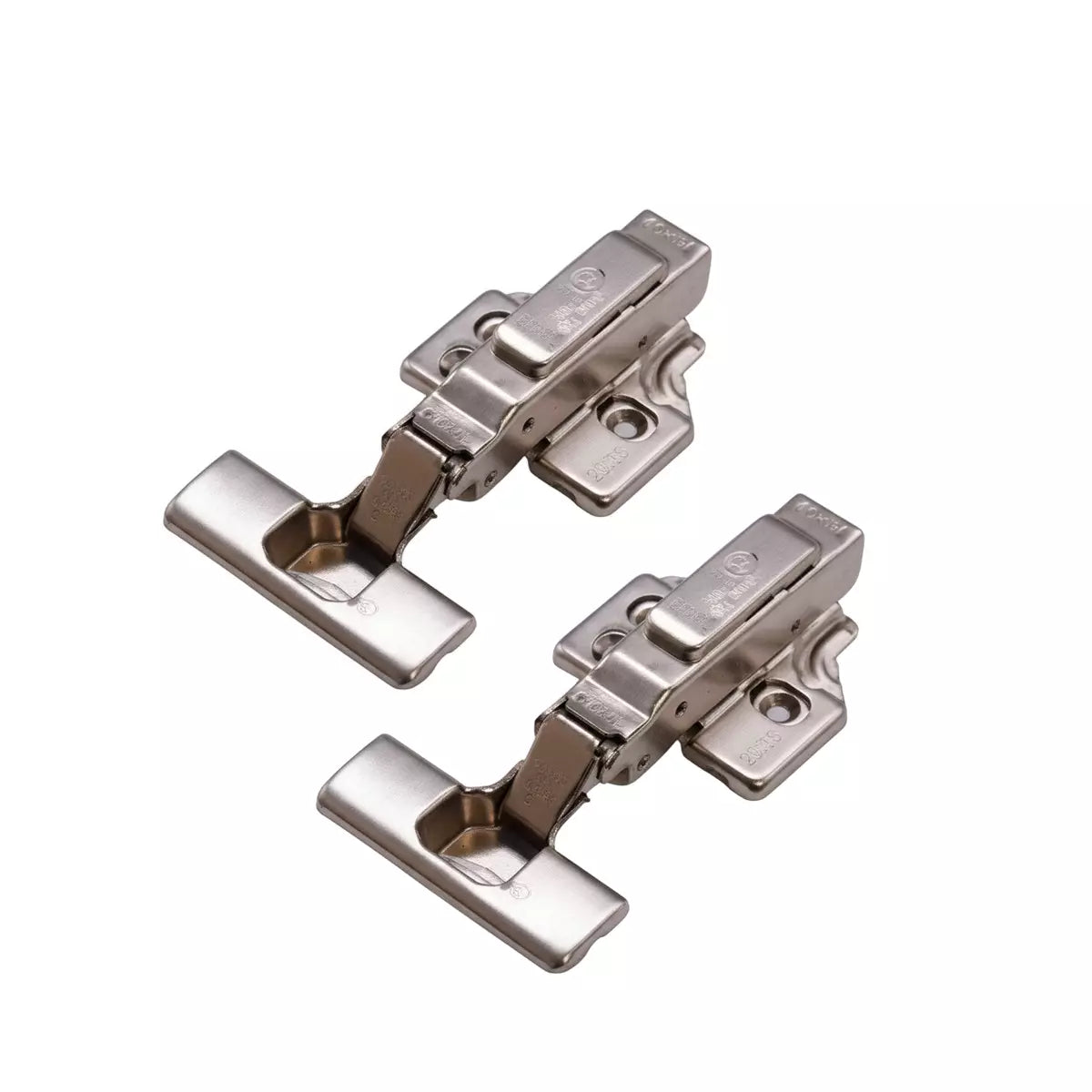

If you’ve ever hung a chunky cabinet shutter and watched a regular hinge struggle, you’ll get why the Ebco Thick Door Hinge exists. It’s built specifically for 15–35mm door thickness, which covers everything from heavy MDF laminates to proper solid wood shutters. Here’s the thing — thick doors throw off alignment fast, and cheap hinges start sagging or binding. This one’s made to handle that extra mass without complaining.

What really makes life easier on install is the 3D mounting plate adjustment paired with a durable nickel plated steel body. In practice, that means you can tweak height, side gap, and depth after the door’s already mounted — no pulling the hinge out and drilling again. And that matters a lot on a job site where cabinet boxes are rarely perfectly square.

Key Features:

• 15–35mm Thick Door Support - Designed to carry heavier shutters without sagging or stressing the hinge arm.
• 3D Adjustable Mount Plate - Lets you fine-tune door position in three directions for clean, even gaps.
• Nickel Plated Finish - Helps resist rust and wear in kitchens, wardrobes, and humid interiors.
• Standard 35mm Cup Size - Works with common boring bits and cabinet drilling jigs already in your shop.
• Set of Two Hinges - Gives you a ready pair for one cabinet door installation straight out of the pack.

Applications

This hinge is right at home in modular kitchen cabinets, wardrobe shutters, and heavier custom furniture where standard hinges just don’t cut it. And if you’re installing laminate-faced MDF, acrylic panel doors, or thick shaker profiles, the extra support keeps the door swing smooth instead of stiff or jerky. But it’s just as useful for repair jobs too — swap out weak hinges on an older cabinet and the door suddenly feels properly supported again.

Why Choose This Model

The bottom line is simple: a lot of hinges claim they handle thick shutters, but the reinforced hinge arm design and proper multi-axis adjustment system here actually make installation forgiving. And that saves time — because nobody wants to wrestle with uneven reveals across six kitchen doors. You mount it, dial the screws, and the door lines up. Done. For installers juggling multiple cabinets in one run, that kind of predictability is gold.

Technical Specifications Explained

• Door Thickness Range - Supports 15–35mm shutters so you can confidently mount heavier modern cabinet doors.
• Cup Diameter 35mm - Matches the industry-standard bore size for fast drilling and easy hinge replacement.
• Opening Angle About 95° - Gives practical cabinet access without stressing the hinge or cabinet edge.
• 3D Adjustment Capability - Allows vertical, horizontal, and depth corrections after installation for precise alignment.
• Nickel Plated Steel Construction - Provides strength for daily opening cycles while resisting corrosion in indoor environments.

Who Should Buy This

If you’re a cabinet installer, modular kitchen fabricator, or furniture contractor dealing with thicker-than-normal shutters, this is exactly the kind of hinge you keep stocked. It solves a very real problem — heavy doors that don’t sit right with standard hardware — and it solves it without needing fancy specialty fittings.

And even serious DIY builders working on a premium wardrobe or kitchen upgrade will appreciate how forgiving the adjustable mounting system makes final alignment. But if all you install are thin budget shutters, honestly, you don’t need this level of hinge. This one earns its keep when the doors get heavy — that’s where it really shines.
