Ebco Hinge Slow Motion 3D Max Soft Close (18-27mm Door Thickness)
Ebco Hinge Slow Motion 3D Max Soft Close (18-27mm Door Thickness) - Full Overlay is backordered and will ship as soon as it is back in stock.
Product Features
Product Features
Delivery and Warranty
Delivery and Warranty
Shipping Policy
We strive to deliver your orders quickly and efficiently across India. Orders are processed within 1-2 business days, and delivery times vary based on location. Shipping charges, if applicable, will be displayed at checkout. Once your order is shipped, you will receive tracking details for real-time updates.
For any shipping-related queries, contact our support team at contact us
Warranty Policy
All tools sold at ToolsWarehouse come with a manufacturer’s warranty, ensuring quality and performance. Warranty periods vary by brand and product category. If you experience any defects or issues within the warranty period, please refer to the manufacturer’s warranty terms for claim procedures.
For assistance with warranty claims, reach out to us at contact us
Payment Methods
Payment Methods
- All online payments are securely processed via the PhonePe Payment Gateway, and no card or UPI details are stored on our servers.
- We accept UPI (Google Pay, PhonePe, Paytm, BHIM), Credit/Debit Cards, Net Banking, and Cash on Delivery.
- Cash on Delivery is available in serviceable PIN codes only and is not applicable on orders above ₹8,000.
Description
Description

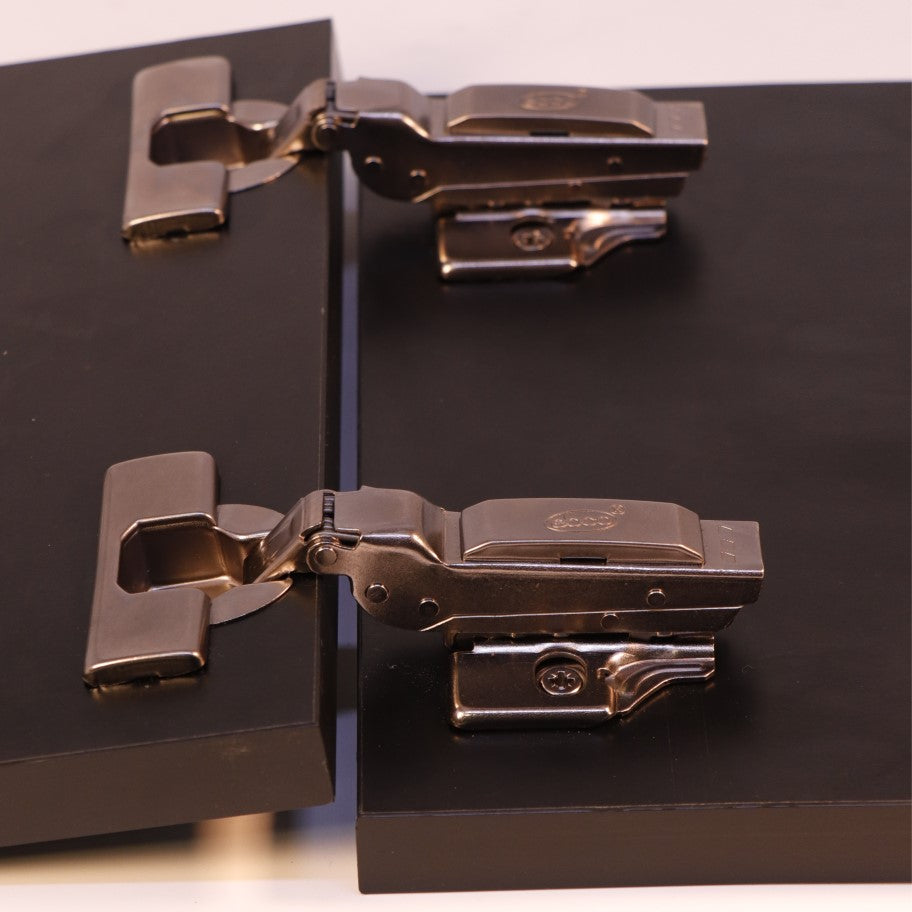

The Ebco Hinge Slow Motion 3D Max Full Overlay Soft Close (18-27mm Door Thickness) NP is a premium heavy-duty cabinet hinge designed for smooth, silent door operation in modular kitchens, wardrobes, and furniture cabinets with thick shutters. This professional-grade 3D adjustable soft close hinge delivers superior durability, three-way alignment precision, and wide 105° opening for maximum cabinet access. Ideal for cabinet makers, interior designers, furniture manufacturers, and DIY enthusiasts working with 18-27mm thick doors.
Engineered from high-grade nickel-plated steel, these hinges feature an integrated slow motion damping system and 3D adjustment mechanism for perfect height, side, and depth alignment on thick shutters. The 35mm Euro cup bore fits standard drilling while supporting cabinet side panels up to 22mm thick. Clip-on design with linear mounting plate ensures secure installation and easy adjustments for professional results on heavy-duty applications.
Available now at Tools Warehouse India, the Ebco Hinge Slow Motion 3D Max Full Overlay Soft Close (18-27mm Door Thickness) NP offers unmatched reliability and whisper-quiet performance for demanding thick door cabinetry across India.
Key Features:
- 3D Adjustment – Height, side, and depth alignment for perfect fit
- Thick Door Compatible – Designed for 18-27mm shutter thickness
- Soft Close Damping – Silent, slam-free door closing every time
- Full Overlay Design – Seamless modern door alignment
- 105° Opening Angle – Maximum access for convenient cabinet use
- Nickel-Plated Steel – Exceptional corrosion resistance
- Linear Mounting Plate – Secure clip-on installation
Technical Specifications:
Brand: Ebco
Material: Nickel-plated steel
Cup Diameter: 35mm
Cup Depth: 11.4-12mm
Opening Angle: 105°
Shutter Thickness: 18-27mm
Cabinet Side Thickness: 17-22mm
Overlay Type: Full Overlay
Adjustment: 3D (Height/Side/Depth)
Closing Mechanism: Soft Close Slow Motion
