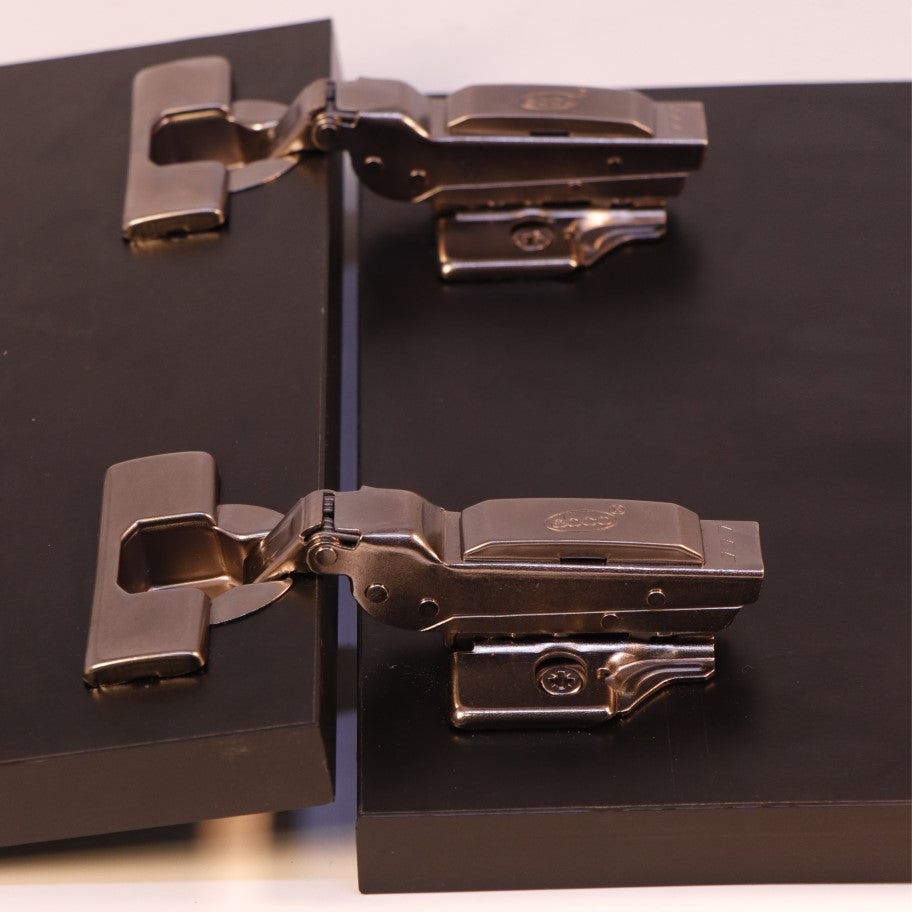

The Ebco Hinge Slow Motion 3D Max Soft Close is one of those hinges that makes you wonder how you ever tolerated the sound of slamming cabinet doors. It's designed for doors between 18-27mm thickness, which covers the vast majority of residential and commercial cabinetry. If you've fitted cheaper hinges before — the kind that lose their dampening after six months — you'll immediately appreciate the difference here.

Ebco has built a solid reputation in the hardware space, and this hinge reflects that. The 3D adjustment system gives you precise control over door alignment after installation, which saves a ridiculous amount of time on site. No more shimming. No more swearing at a door that's off by two millimetres. You dial it in and move on.

Key Features:

• Integrated Soft Close Mechanism - The built-in hydraulic dampener catches the door in the last few degrees of travel and pulls it shut quietly every single time.
• 3D Adjustability - You can fine-tune the door position in three dimensions — height, depth, and side-to-side — without removing the hinge from the cabinet.
• 18-27mm Door Compatibility - Fits a broad range of door thicknesses, making it a versatile pick for kitchens, bathrooms, wardrobes, and office furniture.
• Durable Steel Construction - Heavy-gauge steel and a nickel-plated finish resist corrosion and handle thousands of open-close cycles without degradation.
• Tool-Free Door Removal - A clip-on mounting system lets you snap doors on and off the cabinet body quickly during installation or maintenance.

Applications

This hinge is right at home in kitchen cabinetry, where doors get opened and closed dozens of times a day. But it doesn't stop there. Bathroom vanities, bedroom wardrobes, office credenzas, laundry room storage — anywhere you've got an overlay cabinet door in the 18-27mm range, this fits the bill. It's particularly popular in rental properties and commercial fit-outs where quiet operation and longevity actually matter for reducing maintenance callbacks. And that matters a lot when you're handing over a finished project.

Why Choose This Model

Here's the thing — there are dozens of soft-close hinges on the market, and a lot of them feel almost identical out of the box. The difference shows up six months or a year down the line. The Ebco 3D Max holds its dampening consistency far longer than budget alternatives I've worked with. The slow-motion closing action isn't aggressive or jerky; it's smooth and controlled, which means less stress on the door and the cabinet box over time. You're also getting that three-way adjustment, which is a genuine time saver when you're hanging 30 or 40 doors on a single job. Small misalignments that would normally drive you crazy just get dialled out in seconds.

Technical Specifications Explained

• Door Thickness Range: 18-27mm - Covers standard MDF, plywood, and solid timber panel doors used in most cabinet builds.
• Opening Angle: 110° - Provides full access to the cabinet interior, which is enough for most standard applications without interfering with adjacent doors.
• Mounting Type: Clip-On - Lets you pre-install the mounting plates on the cabinet, then snap the hinge-and-door assembly into place — a huge workflow advantage on large installs.
• Overlay Configuration - Designed for full-overlay door setups where the door face covers the entire cabinet frame opening.
• Material: Nickel-Plated Steel - The plating protects against moisture and minor chemical exposure, which is essential in kitchen and bathroom environments.

Who Should Buy This

If you're a cabinet maker, kitchen installer, or general carpenter who wants a reliable soft-close hinge without paying top-shelf European prices, this is a smart middle ground. It performs well, adjusts easily, and holds up to daily abuse. DIY renovators tackling a kitchen or wardrobe project will also find it straightforward to install — no specialty tools required.

But honestly, where this hinge really earns its keep is on volume installations. The clip-on system and three-axis adjustment take so much hassle out of the alignment process that you'll genuinely finish faster. And when the client shuts those doors for the first time and hears nothing? That's the kind of detail that gets you referrals.
