Ebco Hinge Drilling Template
Ebco Hinge Drilling Template is backordered and will ship as soon as it is back in stock.
Product Features
Product Features
Delivery and Warranty
Delivery and Warranty
Shipping Policy
We strive to deliver your orders quickly and efficiently across India. Orders are processed within 1-2 business days, and delivery times vary based on location. Shipping charges, if applicable, will be displayed at checkout. Once your order is shipped, you will receive tracking details for real-time updates.
For any shipping-related queries, contact our support team at contact us
Warranty Policy
All tools sold at ToolsWarehouse come with a manufacturer’s warranty, ensuring quality and performance. Warranty periods vary by brand and product category. If you experience any defects or issues within the warranty period, please refer to the manufacturer’s warranty terms for claim procedures.
For assistance with warranty claims, reach out to us at contact us
Payment Methods
Payment Methods
- All online payments are securely processed via the PhonePe Payment Gateway, and no card or UPI details are stored on our servers.
- We accept UPI (Google Pay, PhonePe, Paytm, BHIM), Credit/Debit Cards, Net Banking, and Cash on Delivery.
- Cash on Delivery is available in serviceable PIN codes only and is not applicable on orders above ₹8,000.
Description
Description

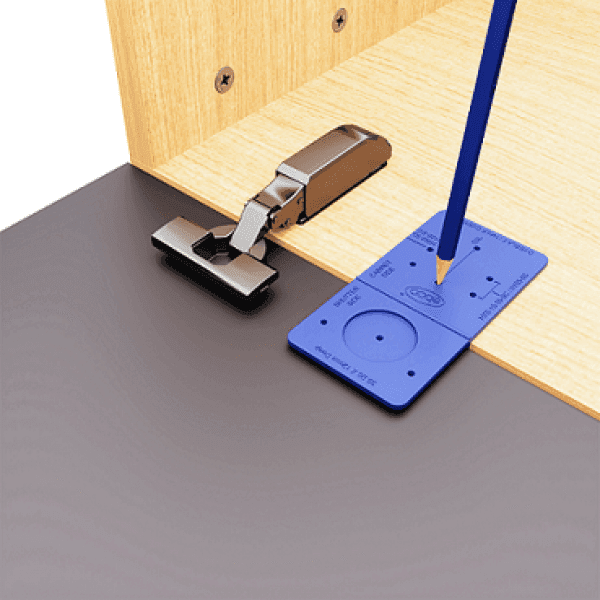

The Ebco Hinge Drilling Template is an essential installation aid designed for cabinet makers, carpenters, and modular kitchen installers working with Ebco concealed hinges (ESL, HTD, HSM-3D, H125 series). Made from durable blue plastic (60 x 28 x 21 mm for HAP-T variant), it provides 1:1 scale markings for 35mm holes at exact depths (11.4-13mm) and edge distances, eliminating measurement errors and boosting productivity. [web:238][web:240][web:241]
Compatible with overlay/half-overlay hinges requiring System 32 drilling, the template clamps securely for simultaneous dual-side marking, ensuring perfect alignment even on uneven surfaces. Ideal for professional workshops handling high-volume installations where precision directly impacts door fit and adjustment needs. [web:238][web:241]
Available at Tools Warehouse India, the Ebco template guarantees error-free hinge placement, System 32 compatibility, and professional results for flawless cabinetry. [web:238]
Key Features:
- Simultaneous Dual Marking – Shutter + cabinet sides for perfect alignment. [web:238][web:240]
- 1:1 Scale Accuracy – Standard System 32 hole positioning. [web:238][web:241]
- Overlay/Half-Overlay Compatible – Works with ESL/HTD/HSM/H125 hinges. [web:241]
- Durable Blue Plastic – Lightweight, long-lasting workshop tool. [web:240]
- 35mm Hole Guides – Precise depth/edge markings (11.4-13mm deep). [web:241]
- Clamp Design – Secure positioning on uneven surfaces. [web:238]
Technical Specifications:
Brand: Ebco
Model: HDT1 / HAP-T (Hinge Drilling Template)
Material: Blue Plastic
Size: 60 x 28 x 21 mm (HAP-T)
Compatibility: Overlay & Half-Overlay Ebco hinges (System 32)
Hole Size: 35mm (11.4-13mm deep)
Application: Precise concealed hinge installation
Country of Origin: India [web:238][web:240][web:241]
