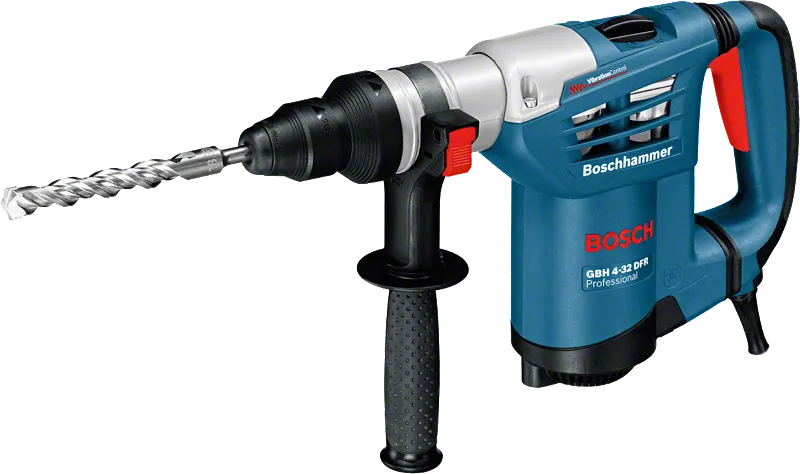

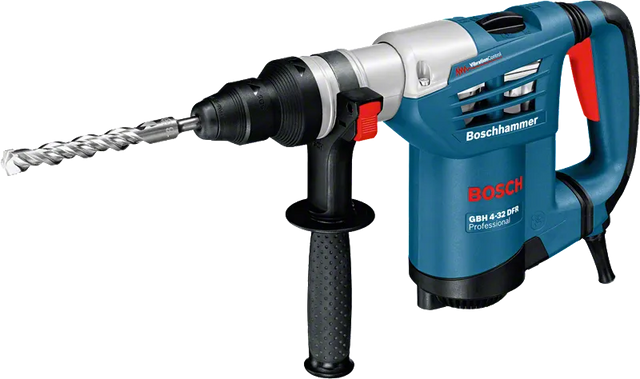

Bosch GBH 4-32 DFR SDS Plus Rotary Hammer Dill
Bosch GBH 4-32 DFR SDS Plus Rotary Hammer Dill is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Warranty
Delivery and Warranty
Default delivery text
Description
Description
Product Description
BOSCH GBH4-32DFR SDS Plus Rotary Hammer is intended for hammer drilling in concrete, brick and stone, as well as for light chiselling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. With Bosch tile chisel professionals can quickly remove tiles from walls and floors. The tool with electronic control and right/left rotation are also suitable for screwdriving. It impresses by offering top power with minimum vibration." }
From the Manufacturer
Bosch Professional GBH 4-23 DFR: One of the Fastest Multi-hammer in Its Class
The GBH 4-32 DFR Professional is one of the fastest rotary and impact hammer in the 4 kg class. It impresses by offering top power with minimum vibration. The strong 900 W motor ensures you can perform your work efficiently, even when drilling large diameters or during challenging chiselling work. The tool sits well in your hand, thanks to the additional handle supplied with it. The GBH 4-32 DFR professional is designed for drilling holes in concrete with diameters of between 14 and 25 mm. With this new rotary hammer, work with core cutters up to 90 mm is also effortless. With the self-sharpening Bosch tile chisel, professionals can quickly remove tiles from walls and floors.
Effective Damping with Vibration Control
The vibration control vibration damping built into the hammer ensures very low vibration values. The damping success has two levels: a significantly enlarged air buffer reduces the air pressures in the hammer mechanism and damps the vibration where it originates. In the second stage of the vibration control, a leaf spring and two swivel joints decouple the main handle from the machine.
The GBH 4-32 DFR professional drills up to 30 per cent faster than other tools in its class. The rotary hammer with overload clutch can be used in wood up to 32 mm and in steel up to 13 mm.
The Ideal Power Tool for Jobsites
The GBH 4-32 DFR professional fast rotary hammer, with a weight of 4.7 kg has a highly sturdy aluminium gear housing. It ensures a wide range of uses for chiselling and drilling work, as well as work with core cutters. The GBH 4-32 DFR professional Bosch hammer is therefore the ideal tool for plumbers, electricians, bricklayers and carpenters. It is possible to drill in metal or wood by replacing the SDS-plus drill chuck with the keyless chuck supplied in the set (not always supplied!). Whether chiselling, drilling holes with large or small diameters or using the core cutter, the Bosch hammer can be used for all of the discerning professional’s tasks.
Ideal Handling Thanks to Compact Design
The slim design with the sturdy aluminium transmission housing, with a length of 400 mm and width of 226 mm, ensures better handling of the GBH 4-32 DFR multi-hammer. The vibration control vibration damping system ensures comfortable and fatigue-free work. The SDS-plus bit holder enables quick bit changes and optimal power transmission. Quick changes between the SDS-plus chuck and the keyless chuck for wood and metal drill bits are also possible. Forward/reverse rotation makes it easier to insert and remove screws and to dislodge jammed drill bits.
Technical Data
- Rated power input 900 W
- Max. impact energy 4,2 J
- Impact rate at rated speed 0 – 3.600 bpm
- Weight 4,7 kg
- Bit holder SDS-plus
- Drilling diameter in concrete with hammer drill bits : 6 – 32 mm
- Optimum range of applications in concrete with hammer drill bits : 14 – 25 mm
- Max. drilling diameter in masonry with core cutters: 90 mm
- Max. drilling diameter in steel: 13 mm
- Max. drilling diameter in wood: 32 mm
Scope of delivery
- Auxiliary handle
- Carrying case
- Depth stop 310 mm
- Keyless chuck 13 mm
- SDS-plus quick-change chuck
- Drilling diameter, concrete hammer drill bits 32 mm
- Max drilling diameter, masonry core cutters 82 mm
- Max drilling diameter steel - 13 mm
- Impact rate at rated speed 0-3600 BPM; Rated speed - 0-760 rpm and impact energy - 5 J
Brand | Bosch |
Power Source | Corded Electric |
Maximum Rotational Speed | 800 RPM |
Voltage | 240 Volts |
Colour | Blue, Black & Silver |
Included Components | 1-Piece Auxiliary handle, 1-Piece Carrying case, 1-Piece Depth stop 310mm, 1-Piece Grease tube, 1-Piece Machine cloth See more |
Speed | 760 RPM |
Item Weight | 7270 Grams |
Maximum Power | 900 Watts |
Manufacturer | Bosch, 18004258665, bpt@in.bosch.com |
